xwz300 automatic high speed carton package machine
  • >
  • >
  • >
  • >

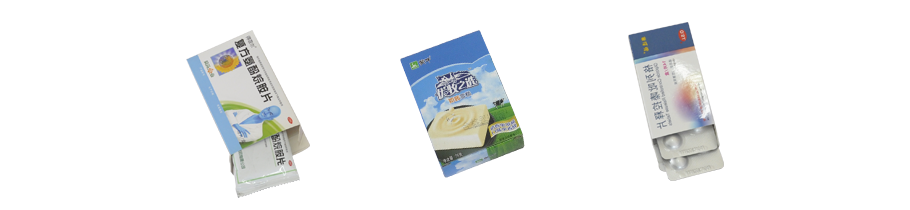

sample

xwz300 automatic high speed carton package machine is a continuous operating automatic horizontal type cartoning machine. it adopts plc,human machine interface,creative designs the speed adjustment technology and the automatic controlling technology of integration of machine,electricity and light. totally conforms with gmp requirements. the machine is composed of paperfolding machine and carton packing machine,etc. its box opening head can open 3 boxes each revolve,the highest speed can reach 300 cartons/min.

overview
innovation
parameters

xwz300 main technical parameter

tr bgcolor="#fff">

main technical parameter

capacity(cartons/min)

100-300

box dimension(l×w×h)

(70-190)×(35-75)×(15-70)

packing material

300-350

leaflet dimension(l×w) (100-260)×(100-160)

leaflet pap required(g/m²)

50~70

clean compressed air(pressure)(mpa)

0.5~0.7mpa

air consumption(m³/min)

≥0.3

power(mm)

ac380v 50hz 5kw

overall dimension (l×w×h)(mm)

4500×1450×1700

net weight

3000
